Exploring the Depths: Revolutionizing Freshwater Habitat Mapping

by | Sep 5, 2024 | Blog | 0 comments

Freshwater ecosystems are crucial hotspots of biodiversity, yet their underwater landscapes often remain hidden from our view, presenting significant challenges for researchers and conservationists. In Croatia’s stunning Dalmatia, the intricate and deep karstic lakes posed a particularly complex puzzle for habitat mapping and biodiversity assessment. Traditional methods, reliant on point sampling from boats or visual census through diving, provided only fragmented insights at high costs, rendering comprehensive mapping and monitoring near impossible.

Enter a multidisciplinary endeavor led by BIOTA Ltd, employing cutting-edge technology and innovative approaches to unveil the mysteries of the Dalmatian lakes’ transitional habitats and biodiversity. At the heart of this project lay the utilization of side-scan multi-beam sonars, a technology often underutilized in civilian applications but offering immense potential for scientific exploration.

Freshwater habitats in deep Dalmatian lakes was mostly unknown, as they are not easy to approach and examine. Our view of lake habitats is limited to the surface area.

Our expert team embarked on an intensive field campaign, meticulously scanning the depths of different Dalmatian lakes. Mounted on a specialized aluminum boat equipped with state-of-the-art sonar equipment, we navigated predetermined recording lines, capturing detailed imagery of the lake bed and its inhabitants. The result? A wealth of data revealing not just the contours of the lake bottom, but also the distribution of vegetation, substrate types, and even the presence of wildlife, all with unprecedented clarity and precision.

But data collection was just the beginning. Leveraging Geographic Information System (GIS) technology, we translated raw sonar images into comprehensive maps, delineating habitat types and their extent with remarkable accuracy. From dense vegetation patches to rocky outcrops, every feature beneath the water’s surface was meticulously documented, providing invaluable insights into the complex ecosystems thriving within these lakes.

Sonar data and imagery is transferred into GIS and interpreted into a vegetation map

However, our approach didn’t stop at remote sensing. Recognizing the importance of ground truthing, we complemented our sonar surveys with meticulous vegetation sampling, employing a combination of diving expeditions and innovative underwater filming techniques. By collecting vegetation samples and visually documenting submerged habitats, we not only validated our remote sensing data but also gained deeper insights into the composition and dynamics of these fragile ecosystems.

From left to right arrows show: red – coastline composed of clean stone (0 m); orange – the lower limit of the coastal slope composed of stone forms, visible silt fill ~ 30 %; black – sunken ridge – travertine rock; blue – the second step of the coastal slope with a very large slope, a dark surface indicates a depression from which there is no return of sonar rays (greater depth); green – the third step of the coastal slope at -30 m.

Central to our mapping efforts was the integration of established habitat classification systems, such as the Croatian National Habitat Classification (NKS). By aligning our findings with existing frameworks, we ensured compatibility and comparability with broader conservation initiatives, facilitating informed decision-making and policy development.

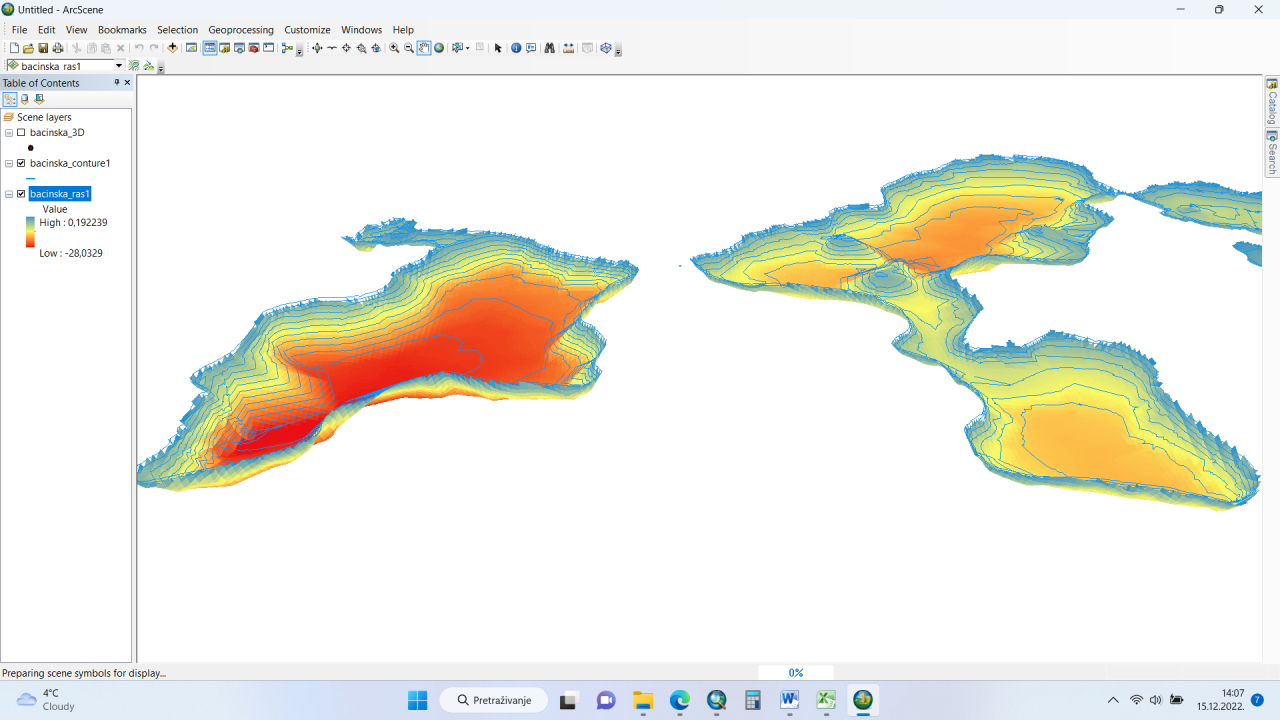

Depth map is the basis for production of 3D map, bottom type and vegetation map

Habitat data was filled in with data from transects and point counts done by diving. Diving was done during high freshwater vegetation season and transects were set to follow the coast slope (from water edge to deepest point). Vegetation is mainly only found in light penetration zone up to – 15 m, but dives were done up to the max -45 m.

Sonar mosaic interpretation. Aquatic vegetation (algae

Yet, our work goes beyond mere cartography. It’s about understanding and safeguarding the delicate balance of life within the lakes. By identifying and assessing potential threats to habitat integrity, from invasive species to anthropogenic impacts, we’re paving the way for targeted conservation strategies aimed at preserving these invaluable ecosystems for generations to come.

Combining drone imagery for interpretation of flood zone vegetation

In essence, our project represents a paradigm shift in freshwater habitat mapping, demonstrating how innovative technologies and collaborative approaches can unlock the secrets of hidden ecosystems. As we continue to refine our methodologies and expand our reach, we’re not just mapping habitats; we’re illuminating the pathways to a more sustainable future for our planet’s precious freshwater resources. Join us on this journey of discovery, where every dive into the depths brings us closer to understanding and protecting the wonders that lie beneath.

This type of habitat mapping can also be applied to rivers and streams. If you are interested in this service in South and Central Europe, feel free to contact us.

Zamenis situla

Zamenis situla lives a life that is almost perfectly optimized to avoid detection. It is active during short and often unpredictable windows. It prefers complex, three-dimensional microhabitats like stone walls, rocky crevices, and dense vegetation where visibility is minimal. It does not bask conspicuously. It does not flee dramatically. More often than not, it freezes, disappears, or never emerges in the first place. From an evolutionary perspective, this makes perfect sense. From a monitoring perspective, it is a nightmare.

And this is where a fundamental mismatch appears between how conservation monitoring is designed and how some species actually live.

Most monitoring frameworks, especially those linked to Natura 2000 obligations, are built on a quiet assumption: that with sufficient effort, you will eventually detect the species. That presence can be confirmed repeatedly. That population size can be estimated. That trends can be calculated. On paper, this sounds reasonable. In reality, for species like Zamenis situla, it often turns into a multi-year exercise in disciplined failure.

We tried everything we were supposed to try. Capture–mark–recapture, the gold standard of population estimation, was implemented carefully and consistently. After three years, recaptures were still too rare to produce any meaningful population estimates. The statistics simply refused to cooperate, not because the method was flawed, but because the species never appeared often enough to close the loops that the models require.

We walked line transects (for Distance methodology), again and again, knowing full well that the probability of encountering such a cryptic snake on an imaginary line through the landscape was low, but hoping that repetition would eventually tip the balance. It didn’t. Common, active snake species showed up. Zamenis situla almost never did. The transects were clean, the data sheets were tidy, and the result was silence.

We set up permanent plots and applied the Occupancy models, accepting that absolute counts might be unrealistic and that presence–absence could be a more honest goal. But even here, detection probability became the limiting factor. Entire predefined squares remained empty year after year, not because the species was absent, but because its lifestyle simply didn’t intersect with our sampling windows often enough to leave a detectable signal.

At the end we also tried to add environmental DNA detecton to the occupancy model to increase the number of records, but eben this yielded a very low detectability, as it seems that besids being elusive, leopard snake is also rare (low number/area) compared to other species and also quite unselective in habitat type (present in low number in variety of habitats).

Ironically, the most consistent records we obtained came from places no one wants to rely on: roads. Dead-on-road individuals. Road transects. Asphalt cutting through stone-rich landscapes. It’s uncomfortable to admit, but roads are often the places where elusive animals briefly become visible, precisely because movement — not habitat — is what exposes them. These records don’t represent healthy systems, but they do represent reality. Ignoring them would have meant ignoring the majority of what the species was willing to show us.

At some point, we had to stop asking a question that clearly wasn’t working. “How many individuals are there?” sounds like the right question, but for species like this, it may simply be the wrong one. So we shifted our thinking. Instead of chasing absolute population size, we focused on something more modest, but far more robust: relative abundance based on effort – CPUE (Catch Per Unit Effort) methodology.

How many individuals do we detect per person-hour of fieldwork? How many per kilometer surveyed? These numbers don’t pretend to tell us how many snakes exist in total. What they do tell us is whether our interaction with the species is changing over time, under comparable conditions and comparable effort. They give us a baseline. A reference point. A way to compare years, sites, and methods without forcing the data to say something it cannot support.

Once we accepted this shift, something important happened. Monitoring stopped feeling like failure. The data, sparse as it was, started to make sense within its own limits. We could finally talk about trends, not in absolute terms, but in relative ones. And for elusive species, relative trends are often the only trends that exist.

Another realization followed naturally. You cannot interpret Zamenis situla in isolation. Its signals are too faint. Its numbers too low. So we began looking at other snake species within the same system, especially those that are more detectable and respond more visibly to environmental change. Their relative abundance became a contextual reference — a way to understand whether changes observed in Zamenis situla reflect species-specific dynamics or broader ecological shifts affecting the entire snake community.

CPUE_snake_comparison_Telascica

What the numbers actually show

When survey effort is standardized using CPUE (detections per person-hour), a clear pattern emerges. Our example is calculated for Telašćica Nature Park (Croatia): some snake species, like Malpolon insignitus, are detected frequently and predictably, while others appear far less often despite the same level of field effort. Zamenis situla falls into this second group with just 0.105 detections per person-hour. Its detection rate is low, but importantly, it is not an outlier — it aligns closely with other elusive snake species such as Elaphe quatuorlineata. In practical terms, this means the species is present, but encounters are rare by nature, not necessarily because populations are collapsing. The value of CPUE lies precisely here: it allows us to compare species fairly under equal effort and to track changes over time, even when absolute population counts are impossible.

Slowly, a clearer picture emerged. Not a precise one. Not a comfortable one. But an honest one.

The real challenge of monitoring rare and elusive species is not technical. It’s philosophical. It requires accepting uncertainty, resisting the urge to over-quantify, and designing monitoring systems that respect biological reality rather than forcing it into predefined statistical boxes. Some species will never give us neat datasets. Some will always exist at the edge of detectability. That does not make them unsuitable for monitoring — it makes them unsuitable for rigid expectations.

In the end, working with species like Zamenis situla teaches you humility. It reminds you that absence of data is not data of absence, that rarity is not always decline, and that conservation is as much about listening carefully as it is about counting. Some species don’t want to be measured. They don’t announce themselves. They don’t make things easy.

And what is next for us? We plan to further test the CPUE methodology and fine-tune it at our most effort-intensive site, the BIOTA research center in Krka National Park, where snake research averages about 4,500 person-hours per year. It’s the only site where even Zamenis situla recapture rates reach around 10%, allowing us to calculate survival, density, detectability, and absolute population size for comparison with CPUE relative estimates.

Zamenis situla

Practical guide: how we actually calculated CPUE (Catch Per Unit Effort)

1. Defining the problem correctly

Before any method was selected, the problem was reframed.

We explicitly accepted that:

  • absolute population size estimation was unlikely to be achievable

  • detection probability was extremely low and variable

  • zero detections could not be interpreted as absence

  • standard outputs (N, density, occupancy probability per grid) were unrealistic goals

The primary objective therefore became:

To establish a repeatable, effort-standardized system that allows comparison through time and space, even when detections are rare.

This single decision guided everything that followed.

2. Field effort standardization (the non-negotiable foundation)

Relative abundance metrics are meaningless without strict effort control.

For every field activity, we recorded:

  • number of observers

  • active survey time (in hours)

  • distance covered (in kilometers)

  • survey type (active search, road transect, incidental)

  • weather conditions and time of day

Only surveys that met predefined comparability criteria were included in calculations (similar season, similar time window, similar survey intent).

This allowed us to later express detections per unit of effort, not as raw counts.

3. Survey types used (and how they were treated analytically)

We did not exclude methods that performed poorly in isolation.
Instead, we treated each method as a filter with its own bias, then decided which outputs were usable.

a) Active visual search (time-based)

This included:

  • slow searches of stone walls, rocky slopes, and vegetation

  • targeted microhabitat inspection

  • surveys conducted during biologically plausible activity windows

Output used:

  • detections per person-hour

Even when detections were rare, time-based standardization allowed comparison between years.

b) Line transects (distance-based)

Transects were walked repeatedly in the same areas.

Outcome:

  • detection probability for Zamenis situla was near zero

Decision:

  • transects were not abandoned

  • but their outputs were not used as standalone indicators for the target species

  • they remained useful for other snake species, which later became reference indicators

c) Permanent plots and occupancy framework

Permanent plots were surveyed repeatedly.

Outcome:

  • insufficient detections to parameterize occupancy models for the target species

Decision:

  • occupancy was rejected as a primary metric for Zamenis situla

  • plots were retained for long-term presence documentation and ancillary species data

This is an important point:
Rejecting a method analytically is not the same as abandoning it operationally.

d) Road transects (distance-based, movement-driven)

Road surveys were conducted systematically:

  • same road sections

  • repeated over years

  • recorded both live and dead individuals

Key insight:
Roads intersect movement, not habitat. For elusive species, this matters more than idealized sampling design.

Output used:

  • detections per kilometer

This became one of the most robust indicators for the target species.

4. The core metrics we calculated

We ultimately focused on two primary metrics, both intentionally simple:

Metric 1: Detections per person-hour

RAtime=Number of detected individualsTotal observer hoursRA_{time} = \frac{\text{Number of detected individuals}}{\text{Total observer hours}}





Metric 2: Detections per kilometer

RAdistance=Number of detected individualsTotal kilometers surveyedRA_{distance} = \frac{\text{Number of detected individuals}}{\text{Total kilometers surveyed}}





These metrics were calculated:

  • per year

  • per survey type

  • using only comparable effort blocks

They were never mixed or pooled without clear justification.

5. Why we explicitly avoided “population estimates”

At no point did we extrapolate these metrics to population size.

We did not:

  • convert detections to density

  • scale results to total habitat area

  • infer absolute abundance

Why?

Because doing so would create false precision.
Relative abundance was treated exactly as that — a relative index, not a hidden proxy for population size.

6. Establishing a baseline (the most important output)

The first years of data were treated as baseline calibration, not evaluation.

Instead of asking:

“Is the population increasing or decreasing?”

We asked:

“What does ‘normal detectability’ look like for this species under standardized effort?”

This baseline now functions as:

  • a reference point for future monitoring

  • a conservation target framework

  • a threshold system for detecting change

7. Adding a third dimension: other snake species as context

Because Zamenis situla produces weak signals on its own, we incorporated other snake species into the analytical framework.

For each year, we calculated the same relative metrics for:

  • common, more detectable snakes

  • species with overlapping habitat use

These species were not treated as controls, but as contextual indicators.

Interpretation followed a simple logic:

  • parallel declines → system-level signal

  • divergence → species-specific dynamics

  • stability in common species + change in target species → real biological signal

This step dramatically improved interpretability.

8. What this framework can and cannot do

It can:

  • detect long-term trends

  • provide objective, repeatable indicators

  • support conservation objectives

  • function under extreme detectability constraints

It cannot:

  • estimate population size

  • replace demographic studies where feasible

  • eliminate uncertainty

And that is precisely why it works.

9. Why this approach is transferable

This framework is applicable to:

  • cryptic reptiles

  • nocturnal mammals

  • rare amphibians

  • low-density invertebrates

  • any Natura 2000 species with structurally low detectability

The key is not the species.
The key is the willingness to design monitoring around reality instead of expectation.

Final note for practitioners

If you take only one thing from this guide, let it be this:

When detection is the limiting factor, trend detection beats population estimation.

Once you accept that, monitoring rare and elusive species stops being an exercise in frustration and starts becoming a disciplined, honest form of ecological listening.

And sometimes, that is exactly what conservation needs.

Written by Dusan Jelic
